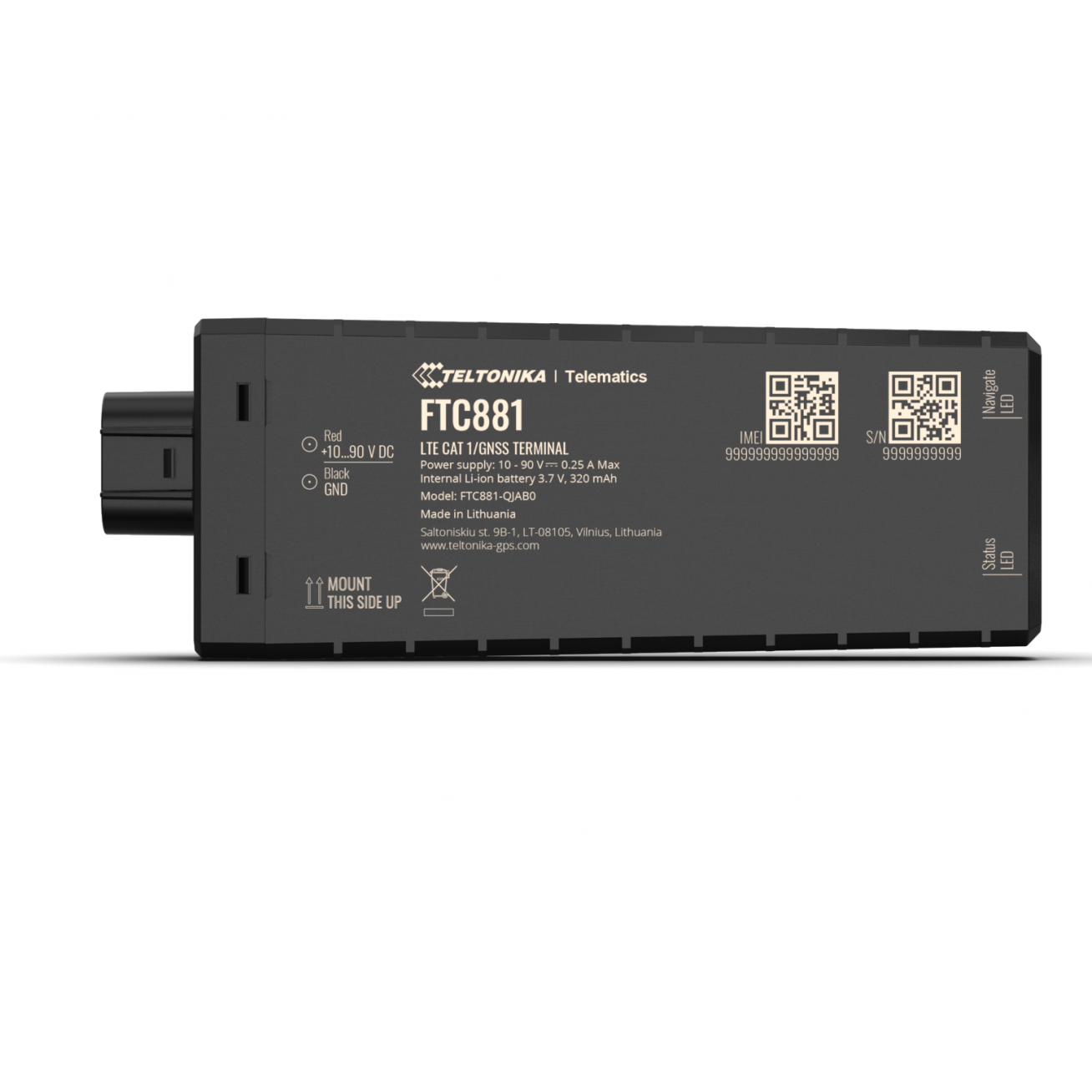

FTC881 4G TELTONIKA GPS TRACKER

Next-generation high-voltage 4G LTE Cat 1 battery-mounted vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance.

FT PLATFORM

• The Fleet Telematics (FT) platform offers advanced firmware and hardware; taking your tracking experience to the next level.

HIGHER GNSS ACCURACY

• More precise GNSS with up to 41 visible satellites; enabling considerably higher tracking quality for location-based services.

IP69K WATERPROOF CASING

• The ultimate protection against dust, high-pressure water, and steam.

LONGER PERFORMANCE, SLOWER DRAINAGE

• Optimized sleep modes allow the device to operate on its own for an extended period of time; significantly reducing vehicle battery drainage.

GNSS

• Supported Systems: GPS, GLONASS, GALILEO, BEIDOU;
• Receiver: 135 tracking/acquisition channels;
• Tracking Sensitivity: -165 dBM;
• Position Accuracy: < 1.8 m CEP;
• Velocity Accuracy: < 0.1 m/s (within ±15% error);

CELLULAR

• 2G Bands: GSM: B2/B3/B5/B8;
• 4G LTE Bands: FTC881-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28;

Data Transfer

• LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL);
• GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL);

Transmit Power

• Class 5 for GSM850/900: 30±5dBM;
• Class 3 for GSM1800/1900: 29±5dBM;
• Class 3 for LTE-FDD: 26±5dBM.
• Data Support: SMS (TEXT, PDU); Network protocols (TCP);

DATA CODEC

• Codec Support: Codec 8 Extended;

POWER

• Input Voltage Range: 10–90 V;
• Internal Back-up Battery: 320 mAh Li-Ion battery 3.7V (1.18 Wh);
• Internal Fuse: 3 A;
• Power Consumption: TBA;

PHYSICAL SPECIFICATIONS

• Dimensions: 118*48*18.5 mm;
• Weight: 118 g.;

OPERATING ENVIRONMENT

• Operating Temperature (without battery): -40 °C to +85 °C;
• Storage Temperature (without battery): -40 °C to +85 °C;
• Operating Temperature (with battery): 0 °C to +40 °C;
• Storage Temperature (with battery): -20 °C to +60 °C;
• Operating Humidity: 5% to 95% non-condensing;
• Ingress Protection Rating: IP69K;
• Battery Charge Temperature: 0 °C to +45 °C;
• Battery Discharge Temperature: -20 °C to +60 °C;

Battery Storage Temperature

• -10 °C to +50 °C for 1 month;
• -10 °C to +35 °C for 3 months;
• 0 °C to +30 °C for 1 year;

INTERFACE

• Connection: U-Type cable;
• GNSS Antenna: Internal High Gain;
• Cellular Antenna: Internal High Gain;
• USB: 2.0 USB Type-C;
• LED Indication: 2 status LED lights;
• SIM: Nano-SIM;
• Memory: 128 MB internal flash memory;

FEATURES

• Sensors: Accelerometer;

Scenarios

• Green Driving;
• Over Speeding Detection;
• Jamming Detection;
• Excessive Idling Detection;
• Unplug Detection;
• Crash Detection;
• Auto Geofence;
• Trip;
• Sleep Modes: Deep Sleep; Online Sleep; Power Off Sleep;
• Configuration and Firmware Update: FOTA WEB; Teltonika Configuration Tool (TCT);
• SMS: Configuration; Debug;
• GPRS Commands: Configuration; Debug;
• Time Synchronization: GNSS; NITZ; NTP;
• Ignition Detection: Accelerometer; External Power Voltage;
• CERTIFICATION & APPROVALS

SET OF EQUIPMENT

• GPS Tracker FTC881 Teltonika;
• Server/SIM card (available for an additional fee);
• Directions for use in English language;

Warranty: 24 months;

Fast delivery.
